Shenzhen Competitor SPD Manufacturing Co., Ltd.

Products

Railway Signal Light Surge Protector

National Advisory Hotline:

0755-89587560 / 135 5493 7178

Contact Us Q Q

掃一掃關(guān)注我們Add WeChat

DescriptionParameterDimensions

Product application:

● Urban rail transit facilities                                      ● Rail transit electrical control system

● Electrical control unit of terminal product              ● Electrical system of traffic signal lamp

● High speed gantry toll control system                   ● Expressway speed measuring equipment system

● Metro power supply electrical control system       ● High speed railway electrical control power supply system


Product features:

● Remote signal: normal closed / failure indication

● Protection mode: overheating and overcurrent instantaneous technology

● Installation method: onboard terminal or standard 35mm rail

● Output mode: terminal block or on-board pin

● Secondary potting, module dust-proof, waterproof, fire-proof and explosion-proof.

● Ultra small leakage current (almost close to zero current loss)

● The whole series of products comply with RoHS and REACH specifications

● Design basis: IEC61643, UL1449, CQC, etc

General technical parameters of products:

◆Protection Class:IP67

◆Respone Time:<25nS

◆Leakage Current:<1uA

◆Operating Temperature:-40-+85℃

◆Storage Temperature:-40-+125℃


Product Parameters

Parameters/TypeSPD05T277PRSPD05T277SRSPD10T277PRSPD10T277SR
Uc                                                            110-120VAC   /   220-277VAC 50/60Hz
MCOV                                                                    150VAC  /  320VAC
Uoc                                       10kV                                        20kV
In                                        5kA                                         10kA
Imax                                       10kA                                         20kA
Wiring Mode           Parallel             Series              Parallel             Series
Package                                                                         14pcs/Plate,84pcs/Carton

★ note: the product output end is equipped with remote signaling port and intelligent continuous power switching function.

    Please confirm the corresponding function module with the business personnel when ordering.

★ standard products have fixed outlet length. Please consult the business department for customization.

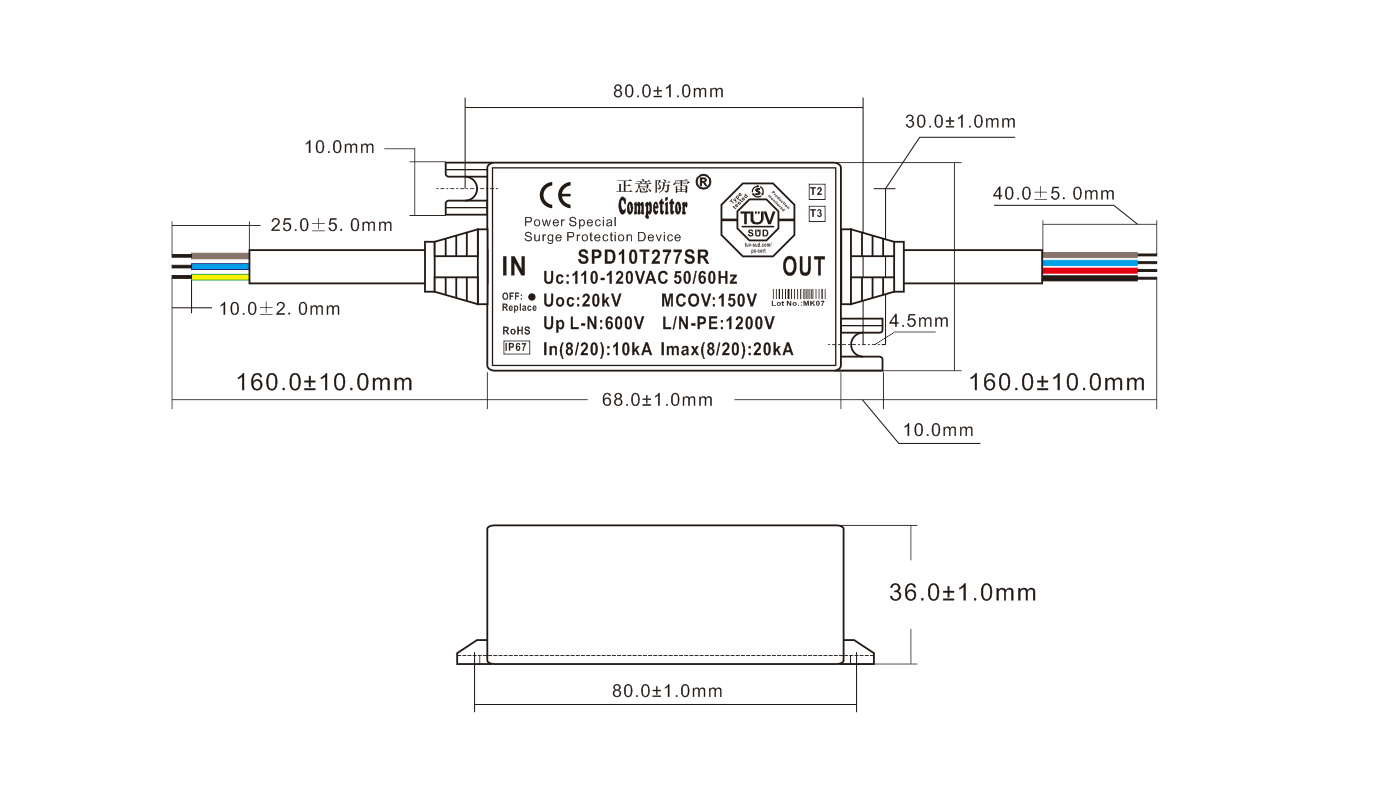

Product Dimension Program:
