Shenzhen Competitor SPD Manufacturing Co., Ltd.

Products

Waterproof Network Surge Protector

National Advisory Hotline:

0755-89587560 / 135 5493 7178

Contact Us Q Q

掃一掃關(guān)注我們Add WeChat

DescriptionParameterDimensions

Ethernet surge protectors are widely used in Tianyan security monitoring system, video integrated systems such as smart city, human-computer interaction system, network port, security monitoring line transmission system, data transmission interface, 100M / Gigabit / 10GB network interface, smart multi-function pole monitoring system port and other surge and lightning protection.


Product application:

● Security monitoring system network port                                  ● Smart city video system port

● Network port of human-computer interaction system              ● Transmission port of outdoor monitoring network

● Data transmission network port of machine room                    ● Network port of intelligent distribution system

● Multifunctional smart pole Internet of things equipment         ● Network power supply and Poe power supply equipment


Product features:

● Indication signal: communication interruption

● Protection mode: gap discharge technology and TVS

● Installation method: Standard 35mm rail / screw

● Output mode: RJ45 standard interface and wiring terminal

● Network transmission can be selected from 100MB, Gigabit and 10MB

● Any line or 8-wire four pair Poe power supply function can be selected

● The whole series of products comply with RoHS and REACH specifications

● The whole series has passed the type test of GB/T 18802.1

● Design basis: IEC61643, UL1449, CQC, etc

General technical parameters of the product:

◆Protection Grade:IP67

◆Network Response Time:<1nS

◆Leakage Current:<1uA

◆Operating Temperature:-40-+85℃

◆Storage Temperature:-40-+125℃


Product Parameters

Parameters/ModelCSM-100M IP67
CSM-100M POE IP67CSM-1G IP67CSM-1G POE IP67
Uc5V5-48V5V5-48V
MCOV6.8V60V6.8V60V
In3kA(8/20)3kA(8/20)3kA(8/20)3kA(8/20)
Imax6kA(8/20)6kA(8/20)6kA(8/20)6kA(8/20)
Up<15V<70V<15V<70V
Failure IndicatorComlossComlossComlossComloss
Installation Type                                                    Screw Fixed Installation

★ Please contact us for product customization.

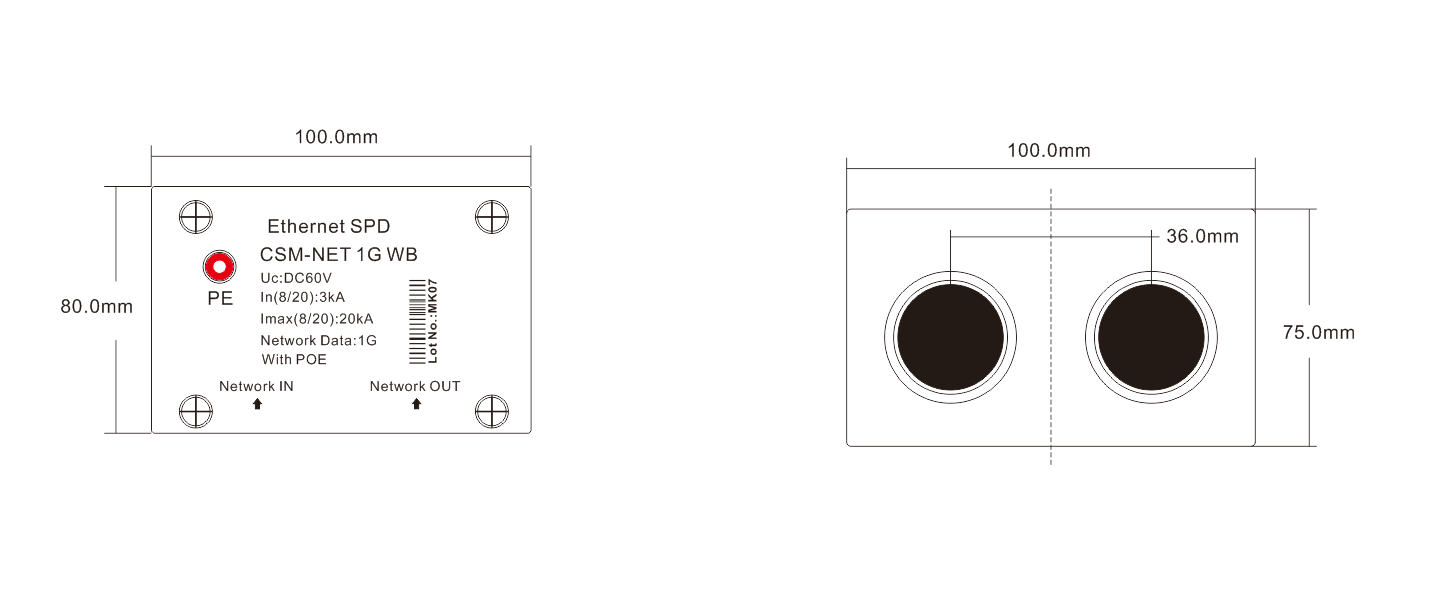

Product Dimension Program:
